UCS1903-8 48leds/m 530nm 9.6W RGB SMD5050 LED Strip Light

Product Categories

Shenzhen GM lighting Co.,Limited.

Contact Now

UCS1903-8 48leds/m 530nm 9.6W RGB SMD5050 LED Strip Light

Brand Name : GM

Model Number : GM-F5050RGB-1903IC-48-X-IPX

Certification : CE, UL, RoHS

Place of Origin : CHINA

MOQ : 100M

Price : 2.3-4USD/M

Payment Terms : T/T, Western Union

Supply Ability : 100000M/MOUTH

Delivery Time : 3-7DAYS

Packaging Details : each reel to a static-resistant bag ,5M/reel,50reels/CTN

Max Power : 9.6W

CCT : 620-630nm 520-530nm 460-463nm

Working temperature(℃) : -30 - 70

Cri (ra>) : 85,90

Lamp body material : Copper

Application : LANDSCAPE,Decorative Lighting,office,Garden,HOTEL

Led light source : 5050RGB

Emitting color : RGB,Blue,White,Yellow,Changeable

Warranty : 3years

Type : Neon strips ,LED Bar Lights

Color temperature(cct) : RGB,2700-7000K,6000-6500K,3800-4250K,Pure White

Led quantity : 48leds/m

Ip rating : IP20

Contact Now

UCS1903-8 RGB SMD 5050 LED Strip Light for Advertising Signboard

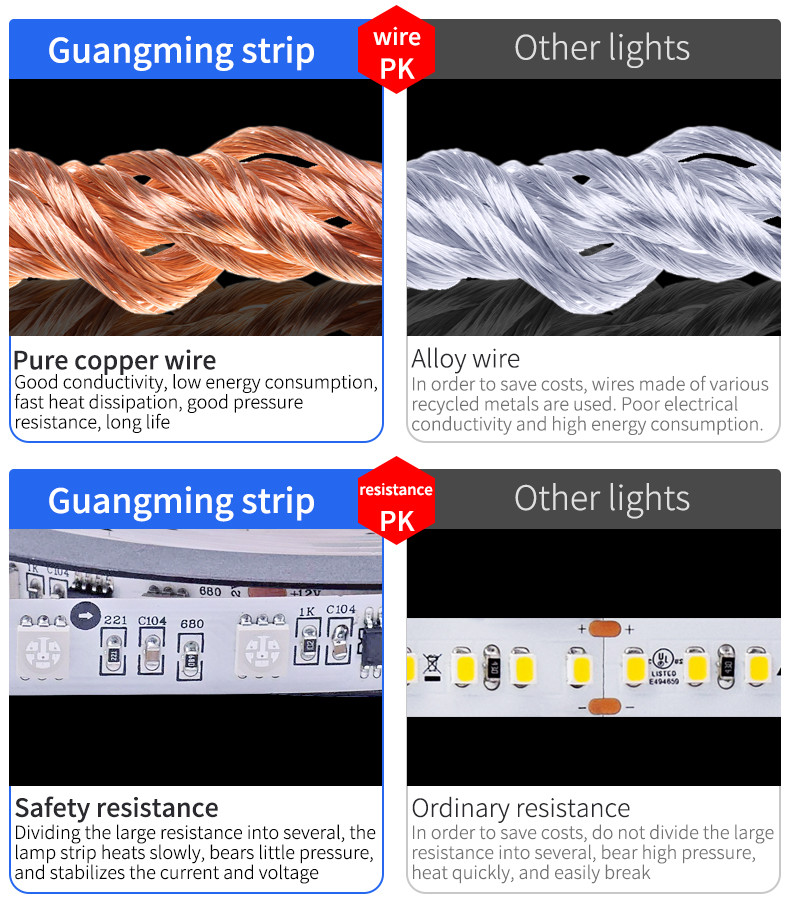

1). 2 X Pure copper wire (0.75 sq . m . measure) as conducting wire, reducing line loss and volt. drop , more stable & safer.

2). Optically modified PVC extrusion : UV stable ; and PVC with heat/cool stabilizer, extremely high /low temp. resistant .

3). Flexible, bendable, unbreakable & cuttable (cut at cutting marks).

4). Eco-friendly, energy-effcient, durable, long-life.

Specifications:

Model	GM-F5050RGB-1903IC-48-X-IPX	GM-F5050RGB-1903IC-60-X-IPX
Work Voltage	12/24VDC	12/24VDC
LED Qty (pcs/m)	48	60
CCT	620-630nm 520-530nm 460-463nm	620-630nm 520-530nm 460-463nm
Lumen(lm/m)	UCS1903-8	UCS1903-8
Ra	80+	80+
Max Power	9.6W	12W
IP Rate	IP20	IP20
Warranty	3 Years	3 Years
pcb Width	W=10mm	W=10mm
PCB Thickness	2Oz	2Oz

Product Description

NEW TYPE NEON LED LIGHT: Replacement for traditional Neon lighting of Structure outline such as Roofs, Windows, Doors, Storefronts and Carports. Perfect for home and garden lighting decoration.
EASY TO INSTALL: Waterproof Neon light strip can use Indoor and Outdoor,12V DC input voltage.
LOW POWER CONSUMPTION: Super Bright LED light running with Low Temperature. All the light spread and completely smooth, luminous very even.
FLEXIBLE AND CUTTABLE: Neon light strip can be shaped, formed or bent in any angle. It can be cut in every 1.64ft/0.5m without damaging the rest strips.
ECO-FRIENDLY: No splash and UV, without mercury and no damage to human and environment.

Double PCB

LED Strip Lights is with doulbe PCB, 10mm width. Flexible design, good electrical conductivity to protect the LED Strip lights with a long life.

welding

Low-temperature reflow soldering technology, solder joints strong. Improve the circuit board firmness, conductivity. Reduce false welding, drain welding.

UCS1903-8 48leds/m 530nm 9.6W RGB SMD5050 LED Strip Light

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
